Interactivity > Sortable grid

This page presents a grid with cells containing content, positioned at random in the grid. The cells are re-positioned by the learner, using drag and drop. Those cells in the correct position are marked with a green tick, and those incorrectly placed with a red cross. The learner can then continue until all the cells are correctly placed.

Specific rows, columns and cells can be locked, so they stay in the correct position and can't be dragged (as is the case in Row 1 and Column 1 in the demo below). Columns or rows can be constrained, so that cells can only be dragged within the column or row they are located in. You can also create a grid with just one column, which enables you to create a text re-ordering task.

Example demo

or view at Xerte Page Types > Interactivity: Sortable Grid (opens in new tab).

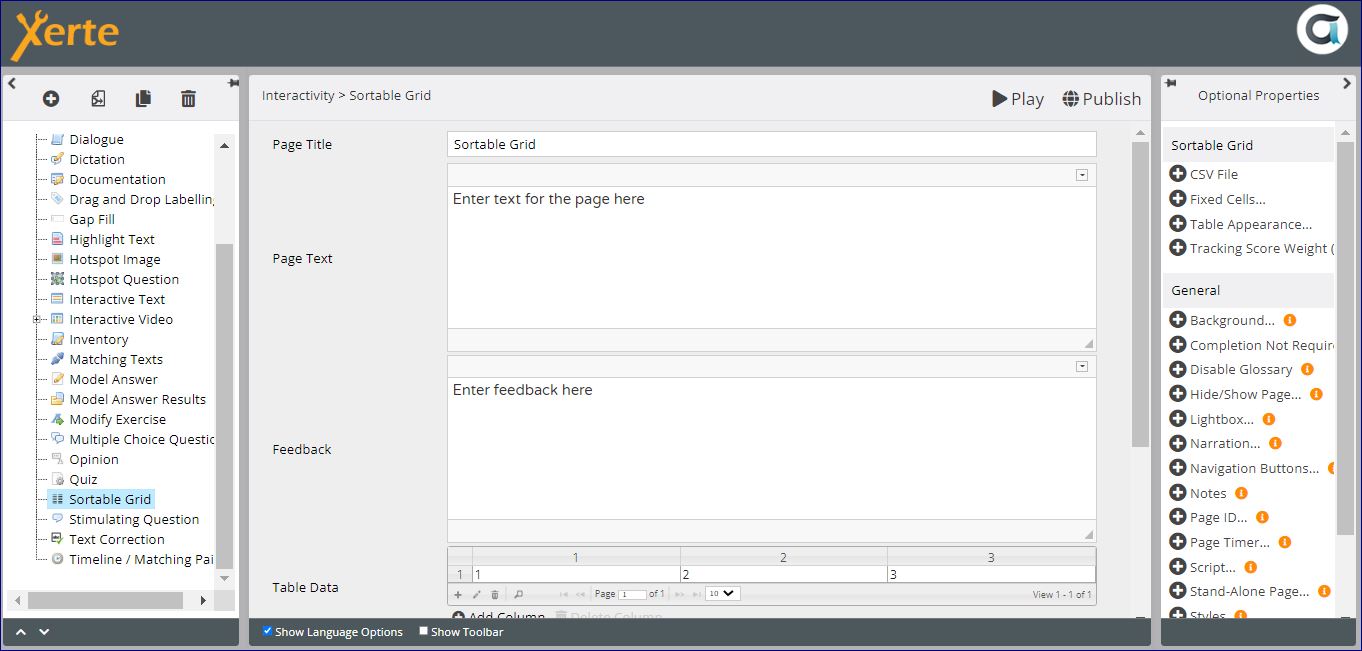

Editor Interface


Core Properties

Property Description Type Additional information
Page Title Text that appears in header of published page Text
Page Text Content that appears at the top of the page (the position of this text may change if you change the Text Align setting (see below) Text+ (Toolbar) Use this to give the context or instructions for the task. Other content (e.g. images, audio, video) can be embedded here.
Feedback Feedback revealed after hitting Check Answers button. Text+ (Toolbar)
Table data This is where you set the number of rows and columns, and enter and edit the content that appears in each cell. Text The Default provides 1 row with 3 columns; you need to add rows and columns as appropriate. Mouseover the icons in the table editor to see what their functions are.
:!: Only rows can be selected for editing. Click on the number of the row to select and then the Edit icon to edit. This function sometimes freezes; if this happens closing and reopening the project should clear the problem.
Constrain Labels { Off / On (Row) / On (Column } If you want cells only to be draggable within columns, or within rows, change the setting here. Otherwise leave the setting on Off. Drop-down
Borders Design the borders of the grid here {None / Full Grid / Simple / Horizontal Only / Vertical Only / Outside Border} Drop-down
Text Align {Left/Right/Top} Aligns text relative to the grid Drop-down
Drop Label Action Decide what happens to the cell content when another cell is dropped onto it {Insert / Replace} Drop-down Replace will swap the label you are dragging with the label in the cell you are dragging to. Insert will adjust all of the labels in between the original cell and the new cell that you are dragging a label to - this would work well if you are making a list of items in order, particularly if Constrain Labels for columns or rows is set to On (see above)

Optional Properties


Property Description Type Tooltip
CSV File Allows a CSV file with the cell data to be uploaded; may save time Link to Media Browser Data can be prepared in Excel, and the file saved in .csv format
Fixed Cells Allows rows, columns and cells to be fixed, so they can't be dragged Text Fix specific cells by identifying cells as follows: column, row. E.g. 3,1 would be the cell at column 3, row 1.
Table Appearance Allows the first row or column to be fixed, with text in bold on a grey background. Also allows alternate rows to be shaded. Text and tick boxes
Tracking Score Weight Allows the task on the page to be weighted relative to other scored pages in the project Text See the Tracking and Weighting page for more information on weighting.


Language Options

Property Description Type Additional information
Check Button Label Text on button for checking matches. Text Default - “Check Answers” If you delete the text in this window, the Check button is hidden, which can be useful, if there is no “model answer” for the task.
Reset Button Label Text on button for resetting the task, so that the learner can start it again Text Default - “Reset”

Further information

This page can be tracked.

It can also be used to create a text-ordering task, by creating a grid with only one column.

:!: Drag and drop is fiddly for learners if they have to scroll up and down to access all drop zones. Dragging and scrolling at the same time does not work consistently. Items can be dropped temporarily into any drop zone and then re-dragged after scrolling, but this adds an additional layer of complication. Zooming out solves the problem, but may impact on readability.
